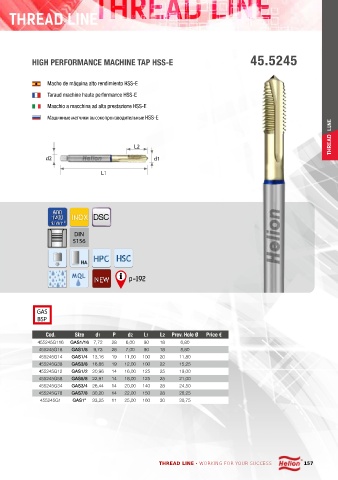

HIGH PERFORMANCE MACHINE TAP HSS-E 45.5245
Macho de máquina alto rendimiento HSS-E
Taraud machine haute performance HSS-E
Maschio a macchina ad alta prestazione HSS-E
Машинные метчики высокопроизводительные HSS-E
THREAD
L2
d2 d1
L1
DSC
DIN
5156
p-192
GAS
BSP
Cod. Size d1 P d2 L1 L2 Prev. Hole Ø Price €
455245G116 GAS1/16 7,72 28 6,00 90 18 6,80
455245G18 GAS1/8 9,73 28 7,00 90 18 8,80
455245G14 GAS1/4 13,16 19 11,00 100 20 11,80
455245G38 GAS3/8 16,66 19 12,00 100 22 15,25
455245G12 GAS1/2 20,96 14 16,00 125 25 19,00
455245G58 GAS5/8 22,91 14 18,00 125 25 21,00
455245G34 GAS3/4 26,44 14 20,00 140 28 24,50
455245G78 GAS7/8 30,20 14 22,00 150 28 28,25
455245G1 GAS1" 33,25 11 25,00 160 30 30,75
