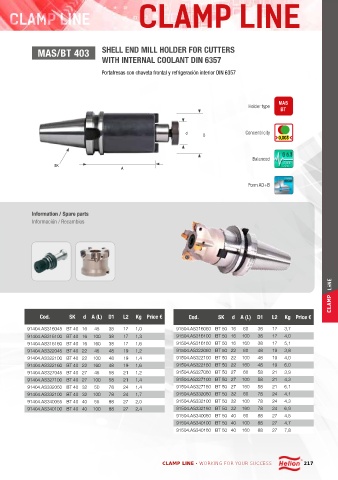

Page 219 - G7_2021_WEB_pendiente

CLAMP LINE CLAMP LINE

MAS/BT 403 SHELL END MILL HOLDER FOR CUTTERS
WITH INTERNAL COOLANT DIN 6357

Portafresas con chaveta frontal y refrigeración interior DIN 6357

MAS
Holder type
BT

d d D D Concentricity
0,003

Balanced
SK
SK
A A
Form AD+B

Information / Spare parts
Información / Recambios

CLAMP
Cod. SK d A (L) D1 L2 Kg Price € Cod. SK d A (L) D1 L2 Kg Price €
91404.AS316045 BT 40 16 45 38 17 1,0 91504.AS316060 BT 50 16 60 38 17 3,7
91404.AS316100 BT 40 16 100 38 17 1,3 91504.AS316100 BT 50 16 100 38 17 4,0
91404.AS316160 BT 40 16 160 38 17 1,6 91504.AS316160 BT 50 16 160 38 17 5,1
91404.AS322045 BT 40 22 45 48 19 1,2 91504.AS322060 BT 50 22 60 48 19 3,8
91404.AS322100 BT 40 22 100 48 19 1,4 91504.AS322100 BT 50 22 100 48 19 4,0
91404.AS322160 BT 40 22 160 48 19 1,6 91504.AS322160 BT 50 22 160 48 19 6,0
91404.AS327045 BT 40 27 45 58 21 1,2 91504.AS327060 BT 50 27 60 58 21 3,9
91404.AS327100 BT 40 27 100 58 21 1,4 91504.AS327100 BT 50 27 100 58 21 4,3
91404.AS332050 BT 40 32 50 78 24 1,4 91504.AS327160 BT 50 27 160 58 21 6,1
91404.AS332100 BT 40 32 100 78 24 1,7 91504.AS332060 BT 50 32 60 78 24 4,1
91404.AS340055 BT 40 40 55 88 27 2,0 91504.AS332100 BT 50 32 100 78 24 4,3
91404.AS340100 BT 40 40 100 88 27 2,4 91504.AS332160 BT 50 32 160 78 24 6,9
91504.AS340060 BT 50 40 60 88 27 4,5
91504.AS340100 BT 50 40 100 88 27 4,7
91504.AS340160 BT 50 40 160 88 27 7,8

CLAMP LINE · WORKING FOR YOUR SUCCESS 217
