INCH LINE INCH LINE

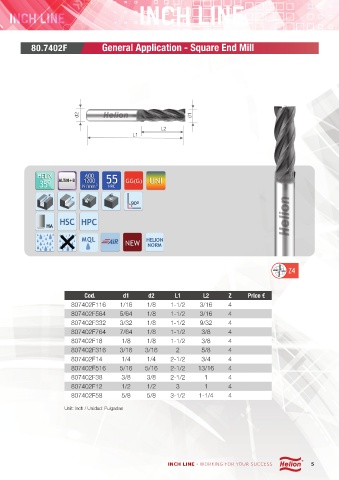

80.7402F General Application - Square End Mill
d2 d1
L2
L1
HELIX
HELIX
HELIX
35º
35 35º ALTiN B
+
º
Z4
Cod. d1 d2 L1 L2 Z Price €
807402F116 1/16 1/8 1-1/2 3/16 4
807402F564 5/64 1/8 1-1/2 3/16 4
807402F332 3/32 1/8 1-1/2 9/32 4
807402F764 7/64 1/8 1-1/2 3/8 4
807402F18 1/8 1/8 1-1/2 3/8 4
807402F316 3/16 3/16 2 5/8 4
807402F14 1/4 1/4 2-1/2 3/4 4
807402F516 5/16 5/16 2-1/2 13/16 4
807402F38 3/8 3/8 2-1/2 1 4
807402F12 1/2 1/2 3 1 4
807402F58 5/8 5/8 3-1/2 1-1/4 4
Unit: Inch / Unidad: Pulgadas
