P. 6
INCH LINE

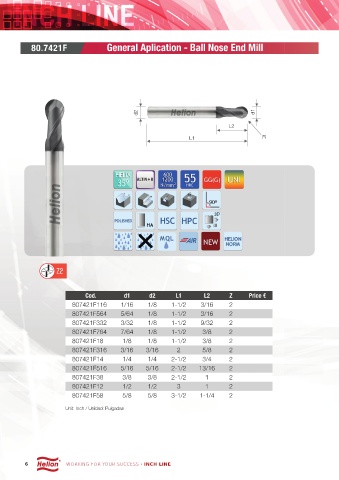

80.7421F General Aplication - Ball Nose End Mill
d2 d1
L2
L1 R
HELIX
HELIX
HELIX
35º ALTiN B
+
º
35 35º
Z2
Cod. d1 d2 L1 L2 Z Price €
807421F116 1/16 1/8 1-1/2 3/16 2
807421F564 5/64 1/8 1-1/2 3/16 2
807421F332 3/32 1/8 1-1/2 9/32 2
807421F764 7/64 1/8 1-1/2 3/8 2
807421F18 1/8 1/8 1-1/2 3/8 2
807421F316 3/16 3/16 2 5/8 2
807421F14 1/4 1/4 2-1/2 3/4 2
807421F516 5/16 5/16 2-1/2 13/16 2
807421F38 3/8 3/8 2-1/2 1 2
807421F12 1/2 1/2 3 1 2
807421F58 5/8 5/8 3-1/2 1-1/4 2
Unit: Inch / Unidad: Pulgadas
