INCH LINE

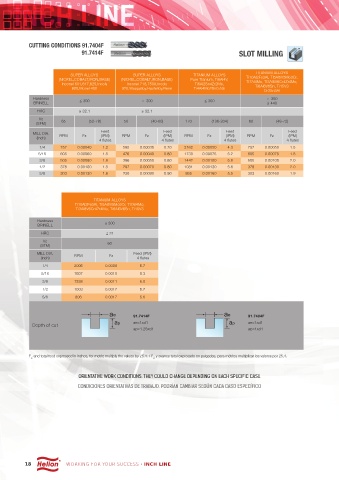

CUTTING CONDITIONS 91.7404F
91.7414F SLOT MILLING

SUPER ALLOYS SUPER ALLOYS TITANIUM ALLOYS TITANIUM ALLOYS
(NICKEL,COBALT,IRON,BASE) (NICKEL,COBALT,IRON,BASE) Pure Ttanium, Ti6Al4V, Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr,
Ti7Al4Mo, Ti3Al8V6Cr4Zr4Mo,
Inconel 601,617,625,Incoly Inconel 718,750X,Incoly Ti6Al2Sn4Zr2Mo, Ti6Al6V6Sn, Ti15V3
800,Monel 400 925,Waspalloy,Hastelloy,Rene Ti4Al4Mo2Sn0.5Si
Cr3Sn3Al
Hardness ≦ 300 ＞ 300 ≦ 350 ＞ 350
BRINELL ≦ 440
HRC ≦ 32.1 ≦ 32.1
Vc
(SFM) 65 (52-78) 50 (40-60) 170 (136-204) 60 (48-72)
Feed Feed Feed Feed
MILL DIA. RPM Fz (IPM) RPM Fz (IPM) RPM Fz (IPM) RPM Fz (IPM)
(inch)
4 flutes 4 flutes 4 flutes 4 flutes
1/4 757 0.00040 1.2 595 0.00030 0.70 2162 0.00050 4.3 757 0.00050 1.5
5/16 605 0.00060 1.5 476 0.00040 0.80 1730 0.00075 5.2 605 0.00075 1.8
3/8 505 0.00080 1.6 396 0.00050 0.80 1442 0.00100 5.8 505 0.00100 2.0
1/2 378 0.00100 1.5 297 0.00070 0.80 1081 0.00130 5.6 378 0.00130 2.0
5/8 303 0.00130 1.6 238 0.00090 0.90 865 0.00160 5.5 303 0.00160 1.9

TITANIUM ALLOYS
Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr, Ti7Al4Mo,
Ti3Al8V6Cr4Zr4Mo, Ti6Al6V6Sn, Ti15V3

Hardness
BRINELL ≦ 300
HRC ≦ 31
Vc
(SFM) 60
MILL DIA. RPM Fz Feed (IPM)
(inch) 4 flutes
1/4 2006 0.0008 6.7
5/16 1607 0.0010 6.3
3/8 1338 0.0011 6.0
1/2 1003 0.0017 6.7
5/8 806 0.0017 5.6

91.7414F 91.7404F
Depth of cut ap ae=1xd1 ap ae=1xd1
ap=1.25xd1 ap=1xd1

F and total feed expressed in inches, for metric multiply the values by 25.4. / F y avance total expresado en pulgadas, para métrico multiplicar los valores por 25,4.
z
z
ORIENTATIVE WORK CONDITIONS. THEY COULD CHANGE DEPENDING ON EACH SPECIFIC CASE
CONDICIONES ORIENTATIVAS DE TRABAJO. PODRÍAN CAMBIAR SEGÚN CADA CASO ESPECÍFICO
