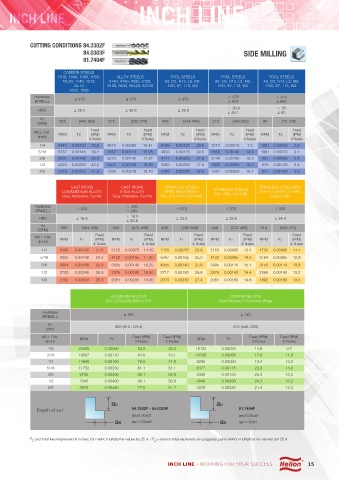

P. 15

INCH LINE                                     INCH LINE





            CUTTING CONDITIONS 84.3302F
                              84.0303F                                                 SIDE MILLING
                               91.7404F

                       CARBON STEELS
                     1018, 1040, 1080, 1090,  ALLOY STEELS   TOOL STEELS       TOOL STEELS      TOOL STEELS
                       10L50, 1140, 1212,   4140, 4150, 4320, 5120,  A2, D2, H13, L2, M2,  A2, D2, H13, L2, M2,  A2, D2, H13, L2, M2,
                           12L15,      5150, 8630, 86L20, 50100  P20, S7, T15, W2  P20, S7, T15, W2  P20, S7, T15, W2
                         1525, 1536
             Hardness       ≦ 275             ≦ 375             ≦ 375            > 375            > 475
             BRINELL                                                             ≦ 475            ≦ 655
                                                                                 > 39.8           > 50
               HRC         ≦ 28.5             ≦ 39.8           ≦ 39.8
                                                                                 ≦ 49.1           ≦ 65
               Vc
              (SFM)   555    (442-662)  315     (253-378)  405    (324-486)  210   (168-252)   90   (72-108)
                                 Feed              Feed               Feed             Feed             Feed
             MILL DIA.  RPM  Fz  (IPM)  RPM   Fz   (IPM)  RPM    Fz   (IPM)  RPM  Fz   (IPM)  RPM  Fz   (IPM)
              (inch)
                                4 flutes           4 flutes          4 flutes          4 flutes        4 flutes
               1/4   8447   0.00100   33.8   4815   0.00080   15.41   6166   0.00120   29.6   3210   0.00010   1.3   1351  0.00005   0.3
               5/16  6757   0.00145   39.2   3852   0.00110   16.95   4933   0.00175   34.5   2568   0.00145   14.9   1081  0.00073   3.1
               3/8   5631   0.00190   42.8   3210   0.00140   17.97   4111   0.00230   37.8   2140   0.00190   16.3   901   0.00095   3.4
               1/2   4223   0.00250   42.2   2407   0.00190   18.30   3083   0.00300   37.0   1605   0.00250   16.0   676   0.00125   3.4
               5/8   3379   0.00310   41.9   1926   0.00240   18.49   2466   0.00390   38.5   1284   0.00320   16.4   541   0.00160   3.5

                          CAST IRONS        CAST IRONS     STAINLESS STEELS                 STAINLESS STEELS(PH)
                       LOW&MEDIUM ALLOY)   (HIGH ALLOY)    (FREE MACHINING )  STAINLESS STEELS  13-8 PH,15-5PH,17-4PH,
                                                                            304, 304L,316,316L
                       Gray, Malleable, Ductile  Gray, Malleable, Ductile  304, 416,420F,430F,440F  Custom 450
             Hardness       ≦ 220            > 220             ≦ 275            ≦ 275             ≦ 325
              BRINELL                         ≦ 260
                                             > 18.8
               HRC          ≦ 18.8                             ≦ 28.5           ≦ 28.5           ≦ 34.4
                                             ≦ 26.6
               Vc
              (SFM)   355     (284-426)  340   (272-408)  490    (392-588)  340   (272-408)  310   (248-372)
                                   Feed             Feed             Feed              Feed             Feed
             MILL DIA.  RPM  Fz    (IPM)  RPM  Fz   (IPM)  RPM  Fz   (IPM)  RPM   Fz   (IPM)  RPM  Fz   (IPM)
               (inch)
                                  4 flutes         4 flutes          4 flutes         4 flutes         4 flutes
                 1/4   5406   0.00100   21.6   5153   0.00070  14.40   7433   0.00070   20.8   5153   0.00060   12.4   4730   0.00060   11.4
                5/16  4325   0.00140   24.2   4122   0.00105  17.30   5947   0.00105   25.0   4122   0.00085   14.0   3784   0.00085   12.9
                 3/8   3604   0.00180   25.9   3435   0.00140  19.20   4955   0.00140   27.8   3435   0.00110   15.1   3153   0.00110   13.9
                 1/2   2703   0.00240   25.9   2576   0.00180  18.50   3717   0.00180   26.8   2576   0.00140   14.4   2365   0.00140   13.2
                 5/8   2162   0.00300   25.9   2061   0.00230  19.00   2973   0.00230   27.4   2061   0.00180   14.8   1892   0.00180   13.6

                                        ALUMINUM ALLOYS                           COPPER ALLOYS
                                      2017,2024,356,6061,7075                 Alum Bronze,C110,Muntz Brass
                Hardness                    ≦ 150                                     ≦ 140
                BRINELL
                  Vc
                 (sfm)                   968 (810~1214)                            533 (446~669)
                MILL DIA.    RPM        Fz      Feed (IPM)  Feed (IPM)  RPM      Fz      Feed (IPM)  Feed (IPM)
                 (inch)                         3 Flutes   2 Flutes                      3 Flutes   2 Flutes
                  1/8        29380    0.00060    52.9       35.3      16193    0.00030    14.6        9.7
                  3/16       19587    0.00110    64.6       43.1      10795    0.00055    17.8       11.9
                  1/4        14690    0.00160    70.5       47.0      8096     0.00080    19.4       13.3
                  5/16       11752    0.00230    81.1       54.1      6477     0.00115    22.3       14.9
                  3/8        9793     0.00300    88.1       58.8      5398     0.00150    24.3       16.2
                  1/2        7345     0.00400    88.1       58.8      4048     0.00200    24.3       16.2
                  5/8        5876     0.00440    77.6       51.7      3239     0.00220    21.4       14.3


                                        ap                                   ap
              Depth of cut                     84.3302F - 84.0303F                   91.7404F
                                               ae=0.50xd1                            ae=0.05xd1
                                               ap=1.00xd1                            ap=1.5xd1


            F and total feed expressed in inches, for metric multiply the values by 25.4. / F  y avance total expresado en pulgadas, para métrico multiplicar los valores por 25,4.
            z
                                                       z

                                                            INCH LINE · WORKING FOR YOUR SUCCESS             15
